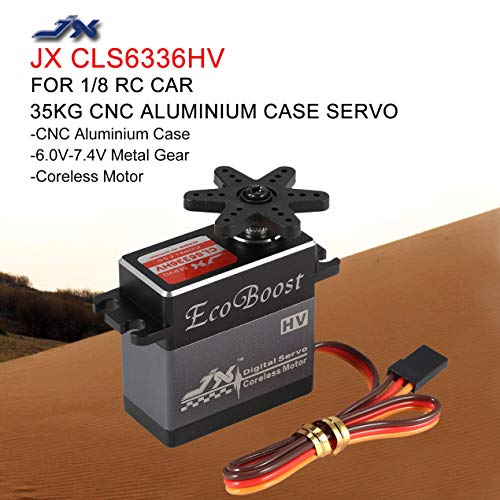

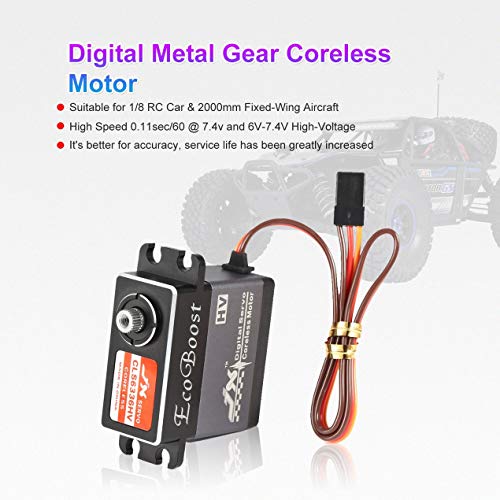

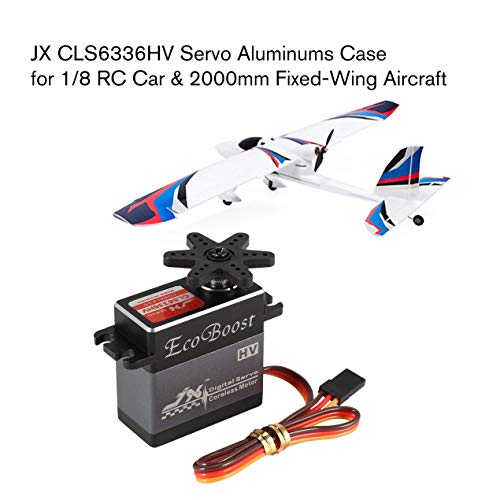

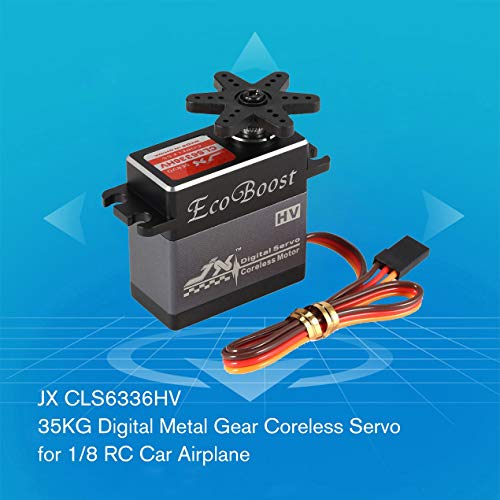

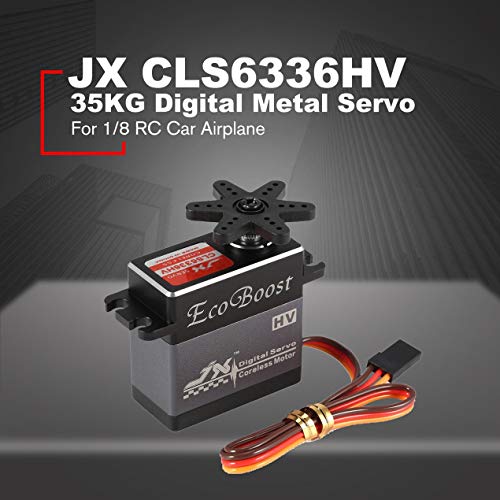

Jx Cls6336Hv 35Kg 6-7.4V Hoogspanning Metal Gear Aluminium Shell Digitale Coreless Servo Voor 1/8 Rc Car & 2000mm Fixed…

Productbeschrijving

Features:
Full metal gear: It’s better for accuracy, service life has been greatly increased
Controllable angle range from 0 to 120 degrees, Excellent linearity, precision control.
35.6kg large torque.35.6kg·cm @7.4V
High Speed 0.11sec/60 @ 7.4v and 6V-7.4V High-Voltage
Suitable for 1/8 RC Car & 2000mm Fixed-Wing Aircraft

Description:
This is JX CLS6336HV 6.0V-7.4V 0.11sec/60° Digital Metal Gear Coreless Motor Servo 35.6kg Torque
Aluminums Case for 1/8 RC Car & 2000mm Fixed-Wing Aircraft

Specifications:
Brand: JX
Signal: Digital
Motor: coreless motor
Dead band: 1μs
Working frequence: 1520μs / 330hz
Connector Wire Length: 265 mm / 10.43in
Operating Speed:（6.0V）:0.14sec / 60°
Operating Speed:（7.4V）:0.11sec / 60°
Bearing: 2BB
Stall Torque (6.0V): 27.8kg.cm
Stall Torque (7.4V): 35.6kg.cm
Dimensions: 53 * 18 * 45mm / 2.09 * 0.71 * 1.77in
Weight: 69g/2.43oz (wires included)

Package Information:
Package size: 98 * 75 * 32mm / 3.86 * 2.95 * 1.26in
Package weight: 112g / 3.94oz
Brand gift box package

Package Included:

1 x JX CLS6336HV 35KG Digital Coreless Servo
1 x Fittings Set

Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow slight dimension difference due to different manual measurement.

Veiligheidswaarschuwing

1. No lo ponga al lado de la condición de alta temperatura. 2.No lo arrojes al fuego. 3.No lo arrojes al agua.

➤ ❤ 1. Volledig metalen tandwiel: het is beter voor de nauwkeurigheid, de levensduur is aanzienlijk verlengd
➤ ❤ 2. Regelbaar hoekbereik van 0 tot 120 graden, uitstekende lineariteit, precisiecontrole.
➤ ❤ 3. 35,6 kg groot koppel. 35,6 kg·cm @ 7,4 V
➤ ❤ 4. Hoge snelheid 0,11sec/60 @ 7,4v en 6V-7,4V hoogspanning
➤ ❤ 5. Geschikt voor 1/8 RC-auto en 2000 mm vliegtuigen met vaste vleugels
